Refrigeration Ball Valves and Flare Fittings

Complete set of premium-performance valves for industrial and commercial refrigeration systems, tailored to VRF systems and for any HVAC-R industry circuit. Manufacturing processes are always in line with industry certifications, strict environmental regulations as well as technical and energy efficiency requirement of the most innovative systems. Products have gained the most coveted certifications in North America and are individually subjected to very strict functional tests.

The entire product range is available with customized insulation, made of Class 1 certified materials and all products sold are covered by an internationally registered trademark. Our valves are designed to guarantee longevity and offer high performance in the most popular systems, operating with eco-friendly refrigerant gases - to help build a prosperous, clean and safe future. We can custom design, manufacture, and market a full range of valves for industrial and commercial refrigeration, suitable for any type of system. Not only providing a product, but also for a technical solution.

Each valve can also be purchased with an optional custom fitted insulation cover. Made from elastomeric rubber insulation, the cover provides a tighter fit and superior insulating properties.

Features



Each single valve is tested 1.34 times higher than the nominal pressure (i.e. 750psi are tested at 1005psi)

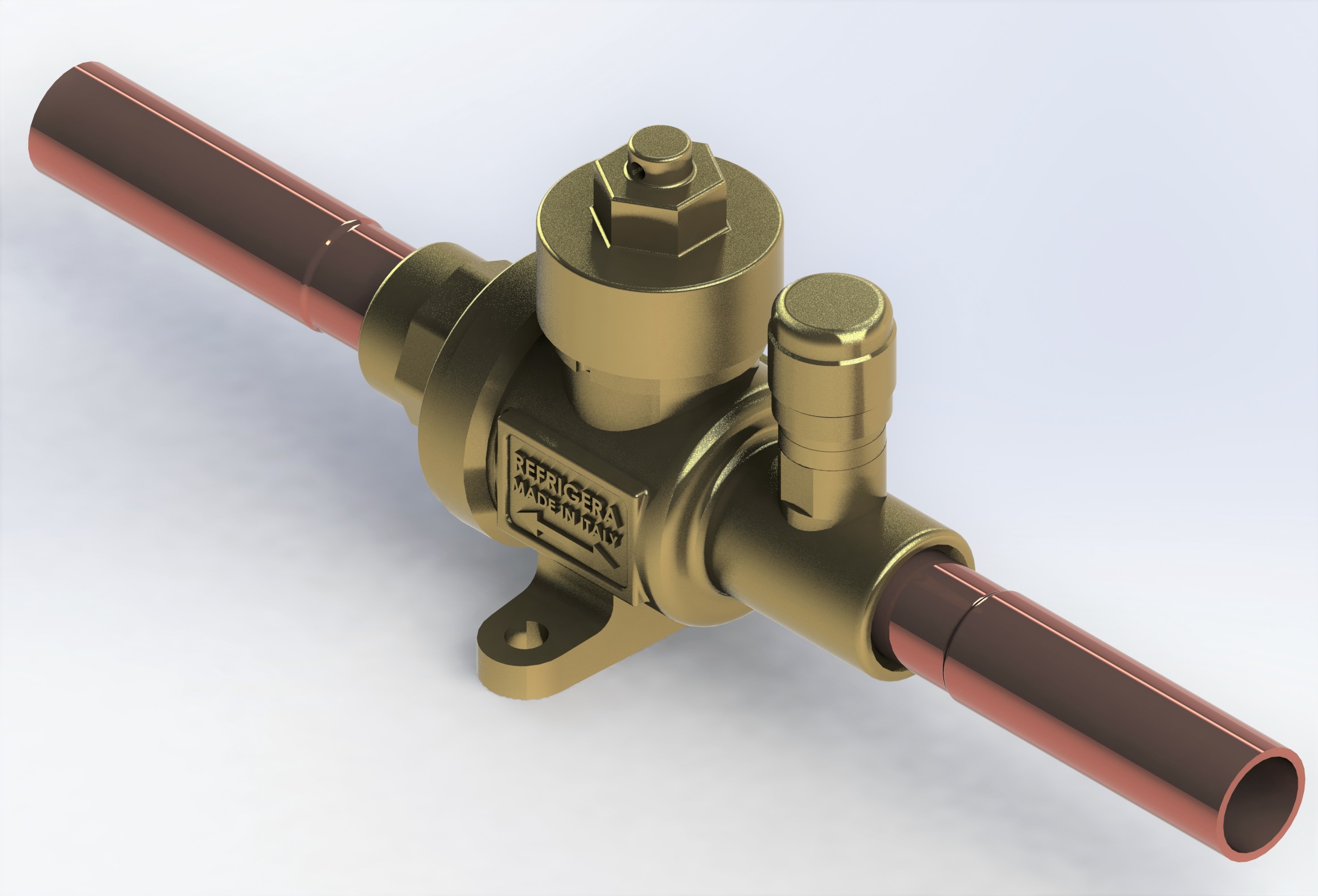

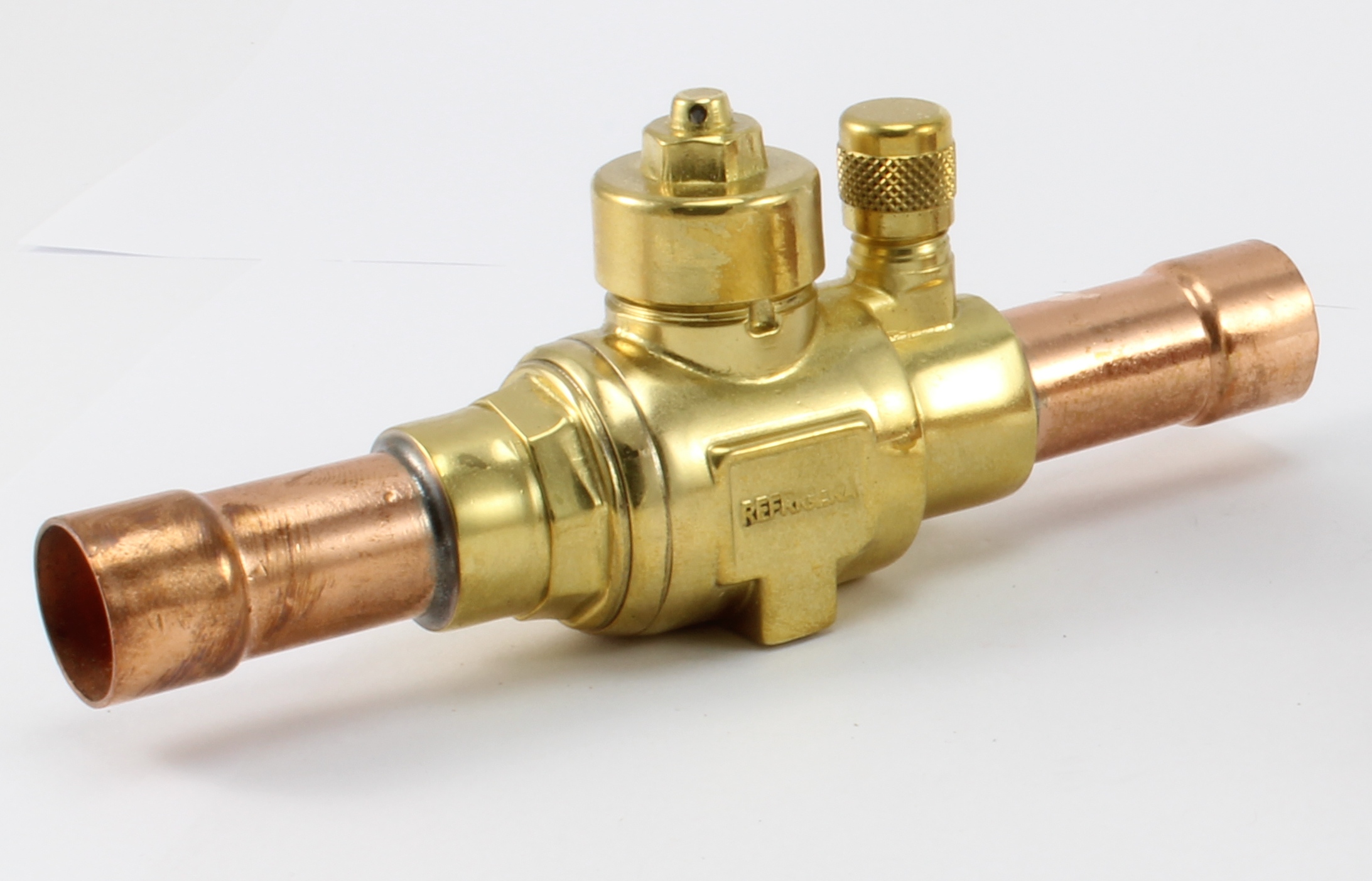

2 WAYS BALL VALVE WITH SCHADER PORT

(ODS X ODS CONNECTIONS)

Ball Valve
PART # Ø SPHERE
PASSAGE
PS(psi) TS(F) Kv OPTIONAL
INSULATION
COVER
REF-14-SODS 1/4" 3/8" 754 -40 +302 1 REF-INSUL-A
REF-38-SODS 3/8" 3/8" 754 -40 +302 2,4 REF-INSUL-A
REF-12-SODS 1/2" 3/8" 754 -40 +302 2,7 REF-INSUL-A
REF-58-SODS 5/8" 5/8" 754 -40 +302 13 REF-INSUL-B
REF-34-SODS 3/4" 5/8" 754 -40 +302 14 REF-INSUL-B
REF-78-SODS 7/8" 3/4" 754 -40 +302 24 REF-INSUL-E
REF-118-SODS 1-1/8" 1" 754 -40 +302 40 REF-INSUL-D

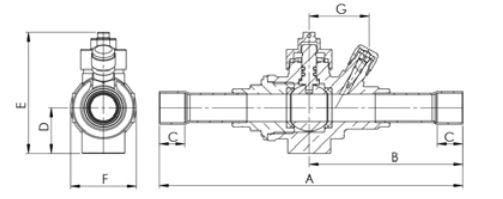

DIMENSIONS

(ODS X ODS CONNECTIONS)

PART # Size A B C D E F G
REF-14-SODS 1/4" 6mm 5" 127.10mm 2.54" 64.5mm 0.27" 7mm 0.75" 19mm 2.28" 58mm 1.22" 31mm 0.96" 24.5mm
REF-38-SODS 3/8" 10mm 5.2" 132.1mm 2.64" 67mm 0.35" 9mm 0.75" 19mm 2.28" 58mm 1.22" 31mm 0.96" 24.5mm
REF-12-SODS 1/2" 13mm 5.55" 141.1mm 2.81" 71.5mm 0.47" 12mm 0.75" 19mm 2.28" 58mm 1.22" 31mm 0.96" 24.5mm
REF-58-SODS 5/8" 17mm 6.55" 166.4mm 3.32" 84.25mm 0.55" 14mm 0.98" 25mm 2.62" 66.5mm 1.42" 36mm 1.3" 33mm
REF-34-SODS 3/4" 19mm 6.47" 164.4mm 3.28" 83.25mm 0.55" 14mm 0.98" 25mm 2.62" 66.5mm 1.42" 36mm 1.3" 33mm
REF-78-SODS 7/8" 22mm 8.17" 207.5mm 4.17" 106mm .7" 17mm 1.18" 30mm 3.29" 83.5mm 1.85" 47mm 1.48" 37.5mm
REF-118-SODS 1-1/8" 29mm 8.49" 215.8mm 4.41" 112mm .79" 20mm 1.3" 33mm 3.5" 89mm 2.16" 55mm 1.54" 39mm

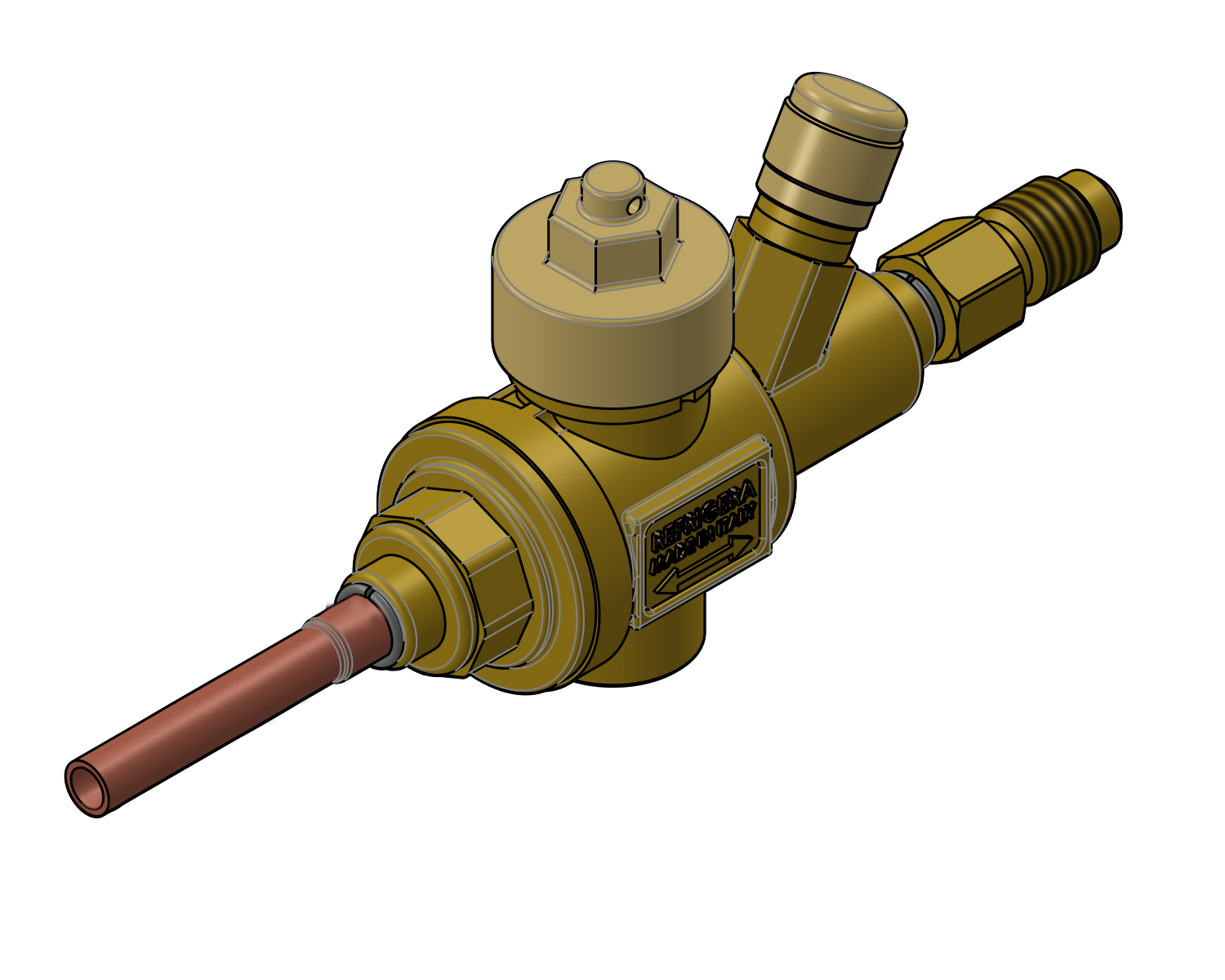

2 WAYS BALL VALVE WITH SCHADER PORT

(ODS X MALE FLARE CONNECTIONS)

Ball Valve
PART # Ø SPHERE
PASSAGE
PS(psi) TS(F) Kv OPTIONAL
INSULATION
COVER
REF-14x14-SSAE 1/4" + 1/4" 3/8" 754 -40 +302 1 REF-INSUL-A
REF-38x38-SSAE 3/8" + 3/4" 3/8" 754 -40 +302 2.4 REF-INSUL-A
REF-12x12-SSAE 1/2" + 1/2" 3/8" 754 -40 +302 2.7 REF-INSUL-A
REF-58x58-SSAE 5/8" + 5/8" 3/8" 754 -40 +302 13 REF-INSUL-B
REF-34x34-SSAE 3/4" + 3/4" 3/8" 754 -40 +302 14 REF-INSUL-B
REF-14x38-SSAE 1/4" + 3/8" 3/8" 754 -40 +302 1 REF-INSUL-A
REF-38x14-SSAE 3/8" + 1/4" 3/8" 754 -40 +302 2.4 REF-INSUL-A
REF-12x14-SSAE 1/2" + 1/4" 3/8" 754 -40 +302 2.7 REF-INSUL-A
REF-12x38-SSAE 1/2" + 3/8" 3/8" 754 -40 +302 2.7 REF-INSUL-A

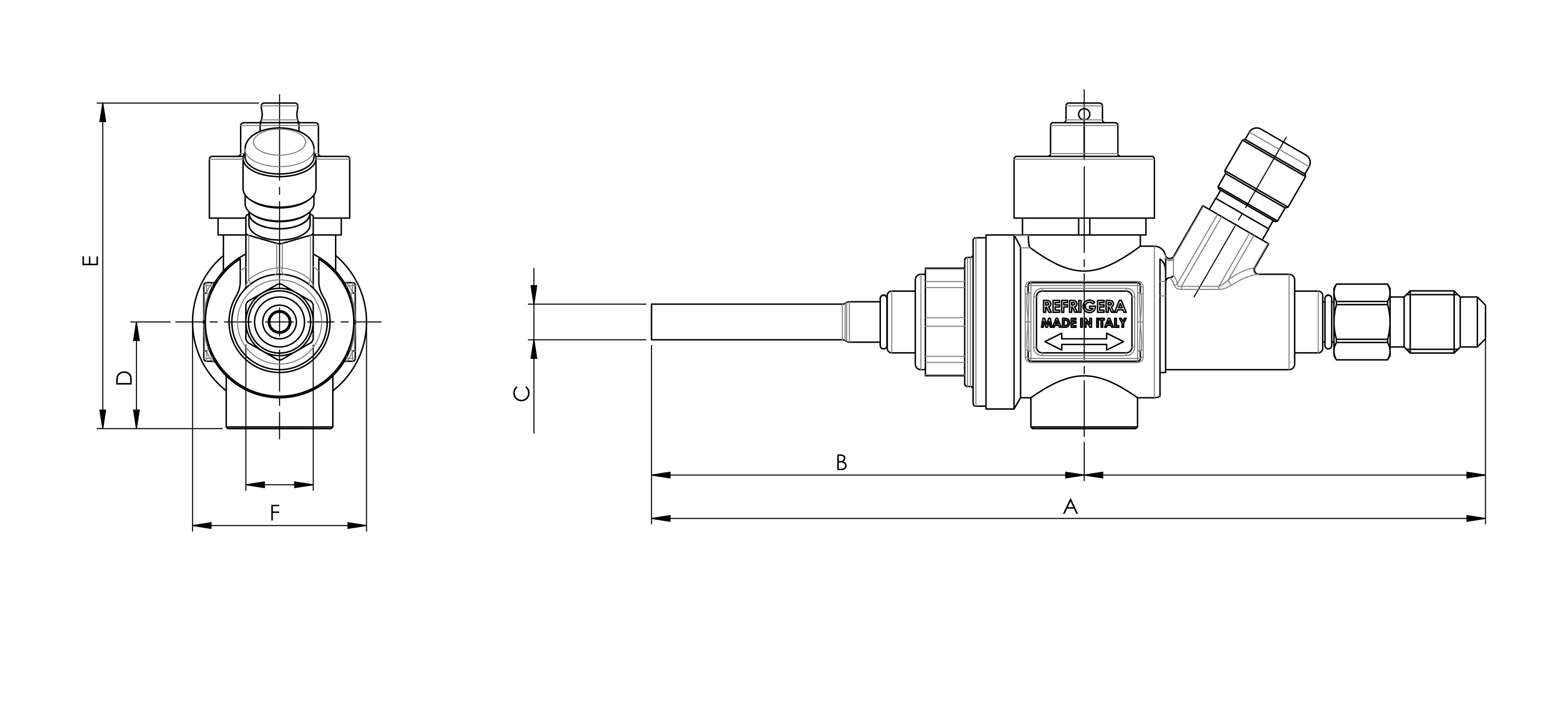

DIMENSIONS

(ODS X MALE FLARE CONNECTIONS)

PART # Size A B C D E F G
REF-14x14-SSAE 1/4" 6mm 4.83" 122.8mm 3.11" 79mm 0.25" 6.35mm 0.75" 19mm 2.28" 58mm 1.22" 31mm 0.96" 24.5mm
REF-38x38-SSAE 3/8" 10mm 4.95" 125.8mm 3.21" 81.5mm 0.37" 9.52mm 0.75" 19mm 2.28" 58mm 1.22" 31mm 0.96" 24.5mm
REF-12x12-SSAE 1/2" 13mm 5.6" 142.35mm 3.58" 91mm 0.47" 12mm 0.98" 25mm 2.62" 66.5mm 1.42" 36mm 1.3" 32.93mm
REF-58x58-SSAE 5/8"" 17mm 5.49" 139.4mm 3.32" 84.25mm 0.55" 14mm 0.98" 25mm 2.62" 66.5mm 1.42" 36mm 1.3" 32.93mm
REF-34x34-SSAE 3/4" 19mm 6.79" 172.4mm 4.17" 106mm 0.55" 14mm 1.18" 30mm 3.29" 83.5mm 1.85" 47mm 1.48" 37.52mm
REF-14x38-SSAE 3/8" 10mm 4.85" 123.3mm 3.11" 79mm 0.25" 6.35mm 0.75" 19mm 2.28" 58mm 1.22" 31mm 0.96" 24.5mm
REF-38x14-SSAE 1/4" 6mm 4.93" 125.3mm 3.21" 81.5mm 0.37" 9.52mm 0.75" 19mm 2.28" 58mm 1.22" 31mm 0.96" 24.5mm
REF-12x14-SSAE 1/4" 6mm 5.09" 129.3mm 3.37" 85.5mm 0.5" 12.7mm 0.75" 19mm 2.28" 58mm 1.22" 31mm 0.96" 24.5mm
REF-12x38-SSAE 3/8" 10mm 5.11" 129.3mm 3.37" 85.5mm 0.5" 12.7mm 0.75" 19mm 2.28" 58mm 1.22" 31mm 0.96" 24.5mm

2 WAYS BALL VALVE WITH SCHADER PORT

(WELD FREE X MALE FLARE CONNECTIONS)

Ball Valve
PART # Ø SPHERE
PASSAGE
PS(psi) TS(F) Kv OPTIONAL
INSULATION
COVER
REF-14x14-WFSAE 1/4" + 1/4" 5/16" 754 -40 +302 1 REF-INSUL-C
REF-38x38-WFSAE 3/8" + 3/8" 5/16" 754 -40 +302 2.4 REF-INSUL-C
REF-12x12-WFSAE 1/2" + 1/2" 5/8" 754 -40 +302 2.7 REF-INSUL-B
REF-58x58-WFSAE 5/8" + 5/8" 5/8" 754 -40 +302 13 REF-INSUL-B
REF-34x34-WFSAE 3/4" + 3/4" 5/16" 754 -40 +302 14 REF-INSUL-B

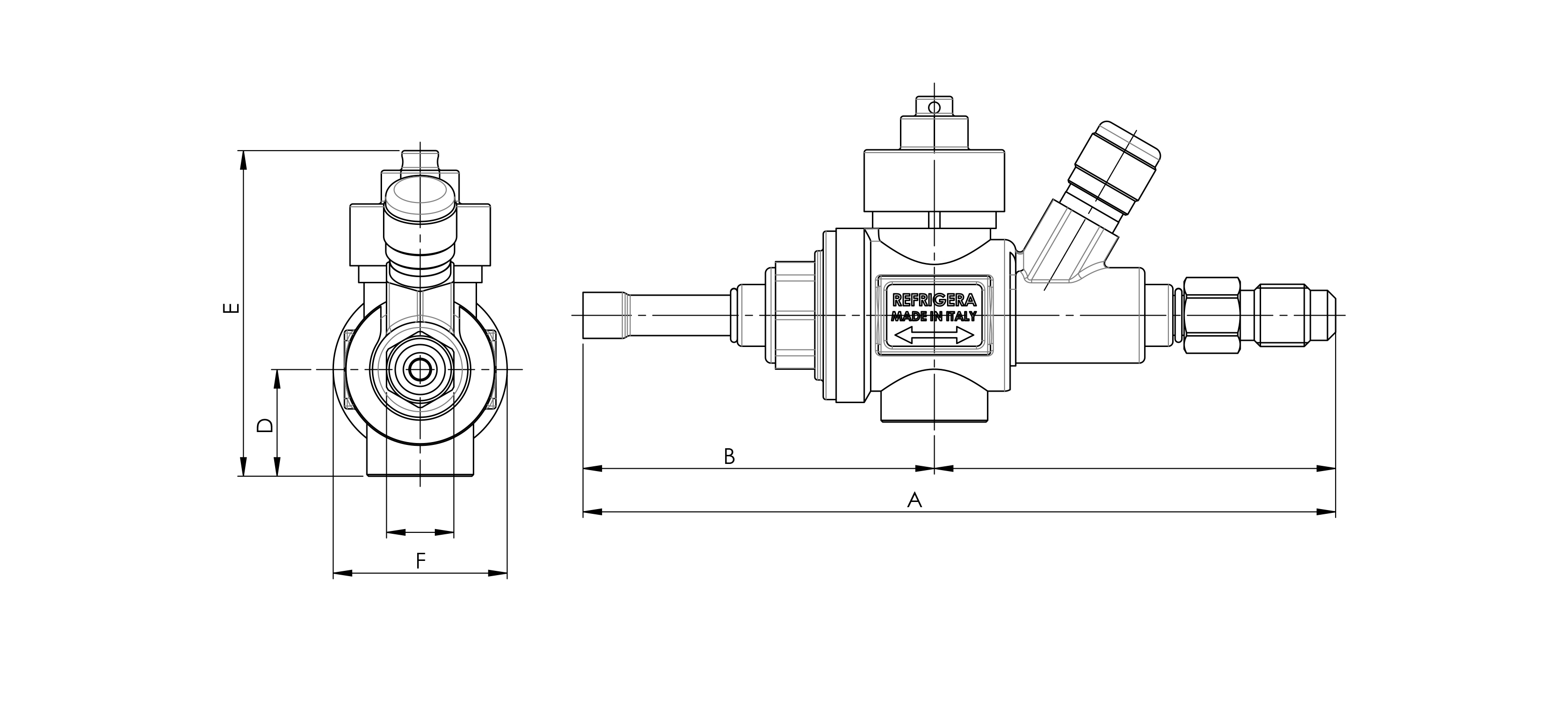

DIMENSIONS

(WELD FREE X MALE FLARE CONNECTIONS)

PART # Size A B C D E F
REF-14x14-WFSAE 1/4" 6mm 4.83" 122.8mm 3.11" 79mm 0.25" 6.35mm 0.75" 19mm 2.28" 58mm 1.22" 31mm
REF-38x38-WFSAE 3/8" 10mm 4.95" 125.8mm 3.21" 81.5mm 0.37" 9.52mm 0.75" 19mm 2.28" 58mm 1.22" 31mm
REF-12x12-WFSAE 1/2" 13mm 5.6" 142.35mm 3.58" 91mm 0.5" 12.7mm 0.98" 25mm 2.62" 66.5mm 1.42" 36mm
REF-58x58-WFSAE 5/8" 17mm 5.75" 146.15mm 3.58" 91mm 0.62" 15.88mm 0.98" 25mm 2.62" 66.5mm 1.42" 36mm
REF-34x34-WFSAE 3/4" 19mm 6.79" 172.4mm 4.17" 106mm 0.75" 19.05mm 1.18" 30mm 3.29" 83.5mm 1.85" 47mm

2 WAYS BALL VALVE WITH SCHADER PORT

(WELD FREE CONNECTIONS)

Ball Valve
PART # Ø SPHERE
PASSAGE
PS(psi) TS(F) Kv OPTIONAL
INSULATION
COVER
REF-14-WFS 1/4" 3/8" 754 -40 +302 1 REF-INSUL-A
REF-38-WFS 3/8" 3/8" 754 -40 +302 2.4 REF-INSUL-A
REF-12-WFS 1/2" 3/8" 754 -40 +302 2.7 REF-INSUL-A
REF-58-WFS 5/8" 5/8" 754 -40 +302 13 REF-INSUL-B
REF-34-WFS 3/4" 5/8" 754 -40 +302 14 REF-INSUL-B
REF-78-WFS 7/8" 3/4" 754 -40 +302 24 REF-INSUL-E

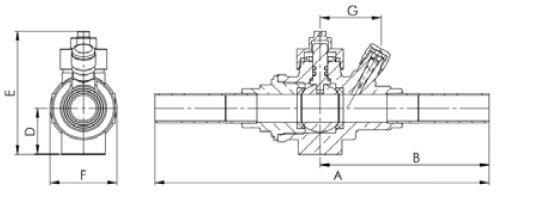

DIMENSIONS

(WELD FREE CONNECTIONS)

PART # Size A B D E F G
REF-14-WFS 1/4" 6mm 6.14" 156mm 3.11" 79mm 0.75" 19mm 2.28" 58mm 1.22" 31mm 0.96" 24.5mm
REF-38-WFS 3/8" 10mm 6.34" 161mm 3.21" 81.5mm 0.75" 19mm 2.28" 58mm 1.22" 31mm 0.96" 24.5mm
REF-12-WFS 1/2" 13mm 6.65" 169mm 3.37" 85.5mm 0.75" 19mm 2.28" 58mm 1.22" 31mm 0.96" 24.5mm
REF-58-WFS 5/8" 17mm 7.08" 180mm 3.58" 91mm 0.98" 25mm 2.62" 66.5mm 1.42" 36mm 1.29" 32.9mm
REF-34-WFS 3/4" 19mm 7.08" 180mm 3.58" 91mm 0.98" 25mm 2.62" 66.5mm 1.42" 36mm 1.29" 32.9mm
REF-78-WFS 7/8" 22mm 8.17" 207.5mm 4.17" 106mm 1.18" 30mm 3.29" 83.5mm 1.85" 47mm 1.48" 37.5mm

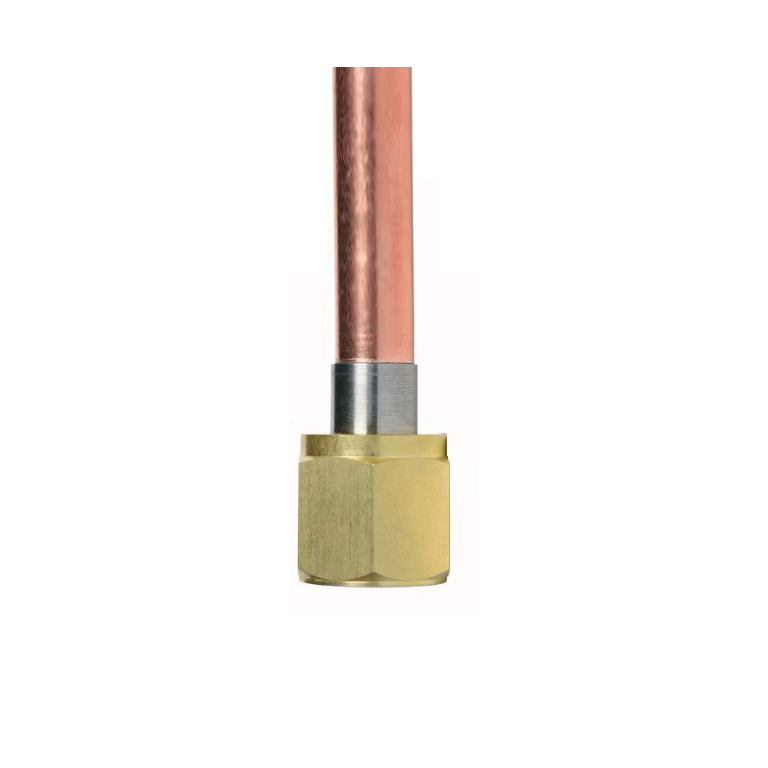

FLARE FITTINGS FOR PRESS CONNECTIONS

  • Specifically designed to reduce refrigerant leaks
  • Stainless-steel core prevents deformation and cracking
  • Saves time and money on maintenance and installation
  • Easy cleaning and brazing
Ball Valve
PART # SAE FLARE ODF "
MF-14 1/4" 1/4"(6mm)
MF-38 3/8" 3/8"(10mm)
MF-12 1/2" 1/2"(12mm)
MF-58 5/8" 5/8"(16mm)
MF-34 3/4" 3/4"(18mm)
MF-78 7/8" 7/8"(22mm)

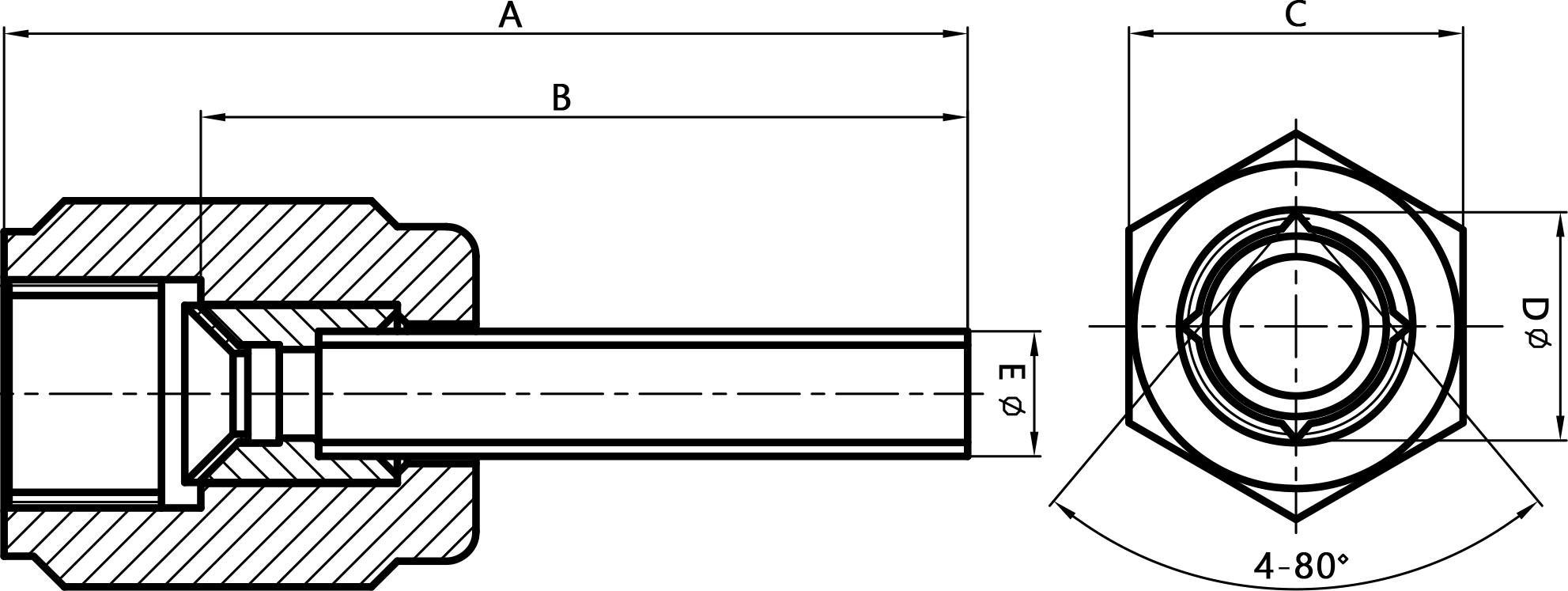

DIMENSIONS

PART # NPS A B C D E STD TORQUE MAX TORQUE
MF-14 1/4" 3.82" 3.50" 0.67" 0.46" 1/4" 12Nm/106in-lb 20Nm/177in-lb
MF-38 1/4" 3.89" 3.50" 0.87" 0.64" 3/8" 26Nm/230in-lb 30Nm/266in-lb
MF-12 1/2" 3.97" 3.50" 0.95" 0.77" 1/2" 47Nm/416in-lb 60Nm/531in-lb
MF-58 5/8" 4.09" 3.50" 1.06" 0.89" 5/8" 48Nm/425in-lb 100Nm/886in-lb
MF-34 3/4" 3.89" 3.50" 1.26" 1.08" 3/4" 78Nm/690in-lb 200Nm/1772in-lb
MF-78 7/8" 3.89" 3.50" 1.50" 1.28" 7/8" 85Nm/750in-lb 220Nm/1949in-lb
