Brackets, Supports & Drains


HMAX carries a wide range of HVAC mounting equipment. Their innovative, proven solutions for wall, rooftop and ground installations are designed by professionals, for professionals.

Brackets come partially assembled for fast, easy assembly. Bubble level, anti-vibration mounts and certified hardware are included on applicable models for a safe, professional installation.

Support arm lengths are fully compatible with all manufacturers' specifications, to comply with wall-to-unit air circulation standards.

Vibration damper kits are available for all bracket sets as well. These high-quality dampers, made of vulcanized natural rubber, come ready to mount with hardware included.

Specifications

Material: Electro-galvanized steel with varnish finish (Ral9002) or stainless steel
Load Capacity: Up to 700lbs
PRODUCT IMAGE PART NUMBER DESCRIPTION

Brackets, Supports & Drains MWB-500 MAX Wall Bracket
Capacity: 550 lbs

Brackets, Supports & Drains HWB-700 HERCULES wall brackets - Powder Coated
Dimensions: 20" x 16" (Depth x Height)
Capacity: 700 lbs
Brackets, Supports & Drains HSSWB-700 HERCULES wall brackets – stainless steel
Dimensions: 20" x 16" (Depth x Height)
Capacity: 700 lbs
Brackets, Supports & Drains GB-550+ ATLAS+ Condenser Stand
MIN; 18" x 14" x 24" (D x H x W)
MAX: 18" x 20" x 34" (D x H x W)
Capacity: 550lbs
Brackets, Supports & Drains RB-330 ROOF bracket
Dimensions: 31" x 19" (Width x Depth)
Adjustable slope from 15° to 30°
Brackets, Supports & Drains BVD-180 Vibration dampers for wall brackets
Dimension: 1-3/16" x 3/4" (Diameter x Height)
Capacity: Up to 180 lbs/piece
Brackets, Supports & Drains BVD-220 Vibration dampers wall brackets
Dimension: 1-9/16" x 1-9/16" (Diameter x Height)
Capacity: Up to 220 lbs/piece
Brackets, Supports & Drains GVD-220 Vibration floor dampers
Dimension: 1-9/16" x 1-9/16" (Diameter x Height)
Capacity: Up to 220 lbs/piece

Brackets, Supports & Drains

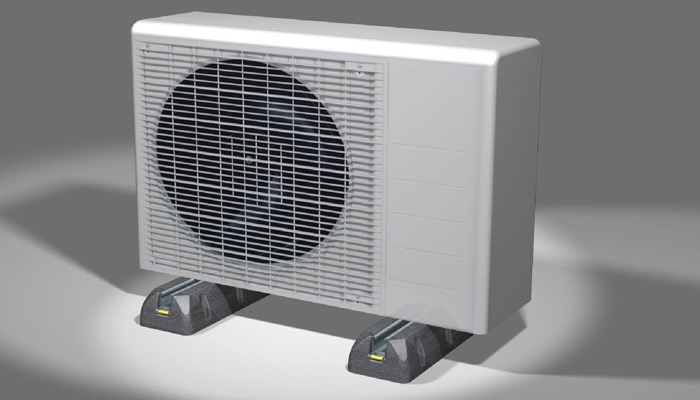

The SUMO™ line of anti-vibration support bases lead the industry in quality, durability and ease of installation. SUMO™ SBR vulcanized, UV-resistant compound and aluminum I-beam internal construction provides safe, stable, silent support for condensing units, heat pumps, pipe systems, boilers, ductwork runs, cable trays, solar panels and a variety of outdoor equipment.

Perfect for rooftop applications – compressed rubber compound won't hurt waterproof membranes. SUMO™ bases are available in 4 standard lengths – with built-in bubble levels and fixing hardware.

Specifications

Material: SBR vulcanized compound – Extruded aluminum core
Load Capacity: 360 - 1400 lbs
Working conditions: -40°F / +180°F

Data Sheets

SUMO Profile Sheet
SUMO Technical Data Sheet
PRODUCT IMAGE PART NUMBER DESCRIPTION

Brackets, Supports & Drains SUMO-SM SUMO rubber support
Dimensions: 10" x 3.5" (Length x Height)
SUMO-M SUMO rubber support
Dimensions: 18" x 3.5" (Length x Height)
SUMO-LG SUMO rubber support
Dimensions: 23" x 3.5" (Length x Height)
SUMO-XL SUMO rubber support
Dimensions: 39" x 3.5" (Length x Height)


SUMO BLOCK

A simple solution for increasing the height of your VRF/AC installations, in line with manufacturers' instructions.

Designed to raise the SUMO rubber bases, the SUMO BBLOCK helps ensure that cooling systems work effectively by keeping units clear of dirt, precipitation and surface ice.

Molded from UV stable recycled rubber, the SUMO BLOCK is a non-penetrative support and will not put the roof at risk from water ingress or thermal bridging.

PRODUCT IMAGE PART NUMBER DESCRIPTION

Brackets, Supports & Drains SUMO-LG-H SUMO Riser
Dimensions: 23" x 4.5" (Length x Height)
SUMO-XL-H SUMO Riser
Dimensions: 39" x 4.5" (Length x Height)


Orion Modular Foot

The Orion Modular Foot is an adjustable support made of glass fiber reinforced polypropylene. The semi-crystalline polymer is characterized by the high breaking load and great thermal resistance.

Thanks to the versatility and speed of assembly, the Orion Foot is recommended for the construction of modular structures, piping and wiring support or any combination of the two with standard strut profiles.

PRODUCT IMAGE PART NUMBER DESCRIPTION

Brackets, Supports & Drains ORION-550 Propylene reinforced with fiber glass
Min Height: 7"
Max Height: 11"
Base Diameter: 12"
Weight Capacity: 550 lbs


Polymer Risers

High quality HVAC equipment risers, manufactured with Grade 1 polymers (PVC and Polypropylene) shockproof, self-extinguishing and stabilized against UV rays.

Supplied complete with mounting hardware and adhesive strips for increased grip and better vibration absorption. End caps available for a professional finish.

Specifications

Material: First choice polymers (PVC and Polypropylene)
Load Capacity: Up to 300 lbs
PRODUCT IMAGE PART NUMBER DESCRIPTION

Brackets, Supports & Drains FS-PVC-PAIR PVC floor support
Dimensions: 18" x 4" (Length x Height)
350 lbs/piece MAX capacity
Packaged in boxes of 2 pieces with adhesive
strips, end caps and mounting hardware.
FS-PVC-LG PVC floor support
Dimensions: 39" x 3" (Length x Height)
350 lbs/piece MAX capacity
Provided with mounting hardware.

Brackets, Supports & Drains PPS-16 Polypropylene floor support
Dimensions: 16" x 3" (Length x Height)
260 lbs/piece MAX capacity
Provided with mounting hardware.


HMAX stocks a wide range of hoses, fittings and accessories for secure, effective drainage of condensate water.

The flexible, corrugated drain hoses are manufactured with high-quality Polypropylene, stabilized against UV rays and highly resistant to cracking and micro-perforations.

Drain hoses are produced with male/female joints at 3-foot intervals and designed to seal perfectly with the provided gasket set (10 pcs per box).

Supplied in 164' coil in a heavy-duty carton.


PRODUCT IMAGE PART NUMBER DESCRIPTION

Brackets, Supports & Drains FDH-58 Flexible condensate drain pipe - 5/8"
FDH-34 Flexible condensate drain pipe - 3/4"

Brackets, Supports & Drains TWJ-58 Three-way central joint - 5/8"
TWJ-34 Three-way central joint - 3/4"

Brackets, Supports & Drains TWSJ-34 Three-way side joint - 3/4"

Brackets, Supports & Drains CWT-SM Condensate water tray
Dimensions: (Width x Depth)

Brackets, Supports & Drains CWT-LG Condensate water tray
Dimensions: 37" x 16" (Width x Depth)

Brackets, Supports & Drains SLIMBOX SLIMBOX rough-in box
Dimensions: 16" x 4.5" x 3" (Width x Height x Depth)

Brackets, Supports & Drains INSULTAPE-BK Black insulating tape
Height: 2" x 30ft Length
Use Insultape-BK for conventional black rubber insulation
Brackets, Supports & Drains INSULTAPE-WH White insulating tape
Height: 2" x 30ft Length
Use Insultape-WH for with ISO line sets

PRODUCT IMAGE PDF

Brackets, Supports & Drains COBRA

Brackets, Supports & Drains HERCULES

Brackets, Supports & Drains ISOTAPE

Brackets, Supports & Drains ORION

Brackets, Supports & Drains RIZER

Brackets, Supports & Drains SLIMBOX

Brackets, Supports & Drains SUMO
