Condensate Pumps
Condensate removal pumps conform to UL and CE approvals. Manufacturing is carried out using advanced technologies and practices in their proprietary, ISO 9001-assessed facility.
| PRODUCT IMAGE |
DESCRIPTION |
| |
|

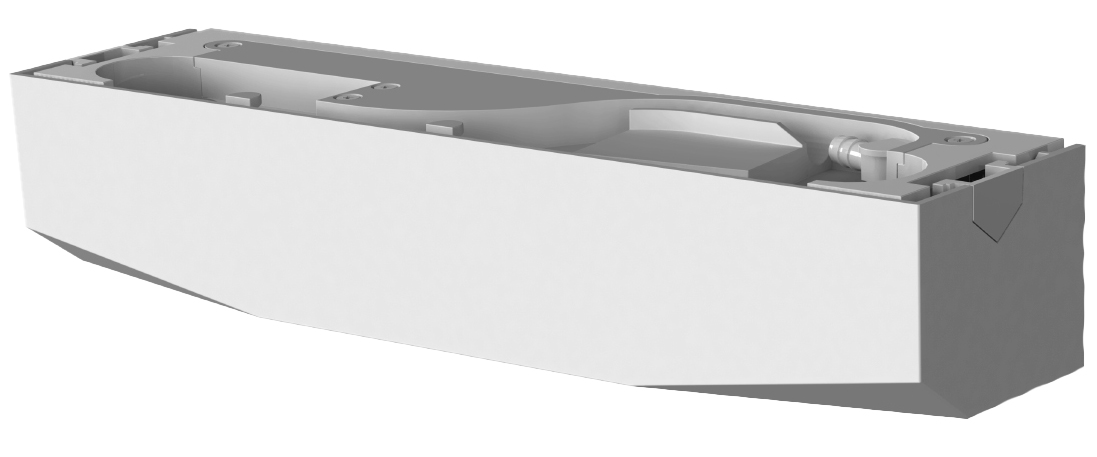

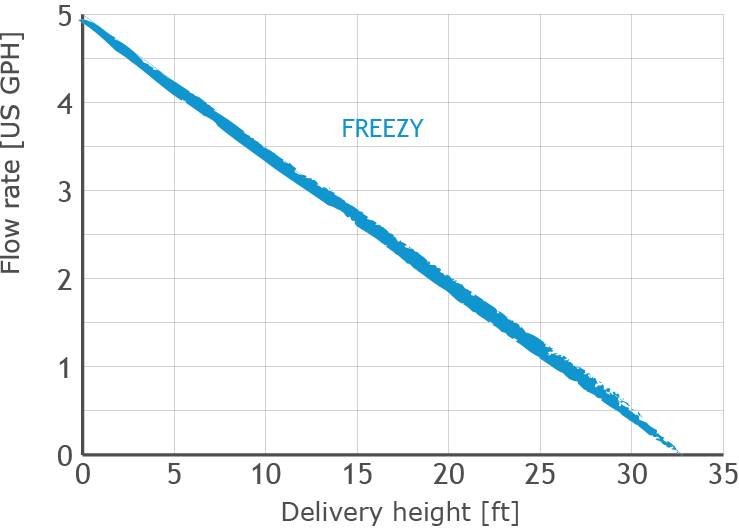

FREEZY
Designed to be the most universal, virtually maintenance-free unit on the market
Download Cut Sheet
| DESCRIPTION |
FREEZY |
| Max Flow Rate |
5.3 gal/h |
| Max Head |
33 ft |
| Voltage |
110 or 240V 50/60 Hz |
| Alarm Relay |
NO/NC 8A 110-240VAC |
| Pump Dimensions |
10.5” x 2.5” x 1.9” |
| Discharge Tube |
1/4" (6mm) ID |
| Suction |
Self Priming |
| Color |
White |
| Noise level |
< 19dB |
| Thermal Protection |
Up to 212°F |
| Installation Range |
6,000-54,000 BTU/H |
| Compliance |
UL94-5VA Material |
|
| |

|

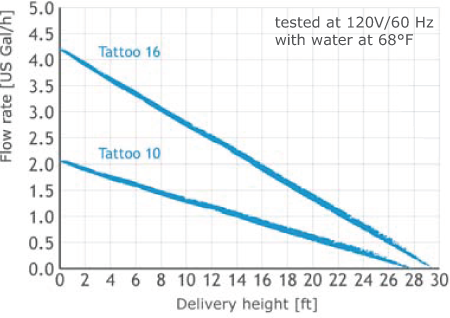

TATTOO 10 / TATTOO 16
The most silent condensate removal system on the market today
Installation Video
Download Cut Sheet
| DESCRIPTION |
TATTOO 10 |
TATTOO 16 |
| Max flow rate |
2.1 gal/h |
4.3 gal/h |
| Flow rate at 3 ft |
1.9 gal/h |
3.8 gal/h |
| Flow rate at 10 ft |
1.4 gal/h |
2.8 gal/h |
| Max dry suction height |
3.3 ft |
3.3 ft |
| Max wet suction height |
6.6 ft |
6.6 ft |
| Max delivery height |
28 ft |
29.5 ft |
| Alarm contact |
NO/NC-120v / 8A |
NO/NC-120v / 8A |
| Pump dimensions |
5.9” x 2.2” x 1.1” |
5.9” x 2.2” x 1.1” |
| Sensor unit dimensions |
3.2” x 1.6” x 1.6” |
3.2” x 1.6” x 1.6” |
| Weight |
15.5 oz |
15.5 oz |
| Power supply |
120v or 230v |
120v or 230v |
| Noise level |
16.4 dBA |
22 dBA |
|
| |
|

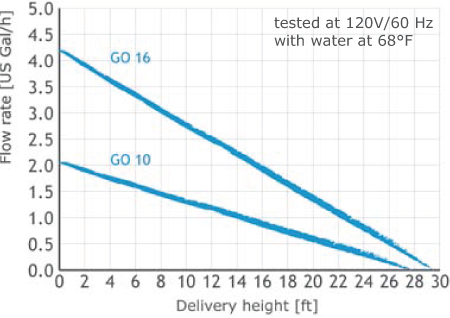

GO 10 / GO 16
All the features of the Tattoo but with a new, compact, transparent design.
Installation Video
Download Cut Sheet
| DESCRIPTION |
GO 10 |
GO 16 |
| Max flow rate |
2.1 gal/h |
4.3 gal/h |
| Flow rate at 3 ft |
1.9 gal/h |
3.8 gal/h |
| Flow rate at 10 ft |
1.4 gal/h |
2.8 gal/h |
| Max dry suction height |
3.3 ft |
3.3 ft |
| Max wet suction height |
6.6 ft |
6.6 ft |
| Max delivery height |
28 ft |
29.5 ft |
| Alarm contact |
NC-120v / 8A |
NC-120v / 8A |
| Pump dimensions |
3.1” x 1.4” x 2.6” |
3.1” x 1.4” x 2.6” |
| Sensor unit dimensions |
3.2” x 1.6” x 1.6” |
3.2” x 1.6” x 1.6” |
| Weight |
9.9 oz |
9.9 oz |
| Power supply |
120v or 230v |
120v or 230v |
| Noise level |
22 dBA |
23 dBA |
|
| |
|

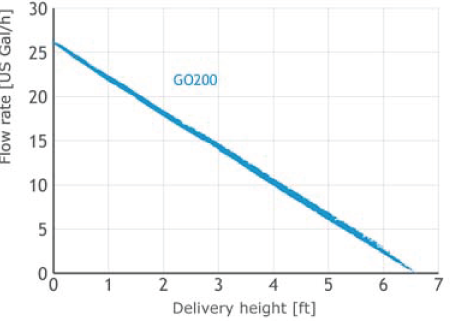

GO 200
A very quiet system with a reversible right or left mount. Features built-in check valve and overflow alarm switch.
Installation Video
Download Cut Sheet
| DESCRIPTION |
GO 200 |
| Max flow rate |
26.4 gal/h |
| Flow rate at 1 ft |
22.4 gal/h |
| Flow rate at 3 ft |
14.4 gal/h |
| Max delivery height |
6.6 ft |
| Alarm contact |
NC-120v / 5A |
| Pump dimensions |
7.9” x 4.3” x 3.9” |
| Power supply |
230v ONLY |
| Noise level |
25 dBA |
|
| |
|

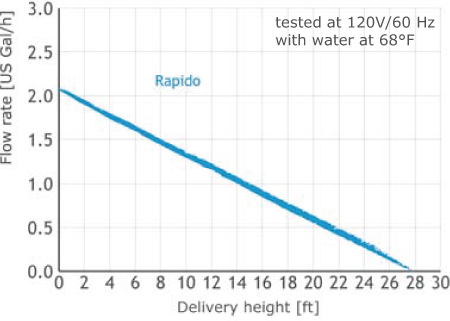

RAPIDO
A silent and reliable solution. Kit comes complete with duct. Reversible right or left mount. Ready to use.
Installation Video
Download Cut Sheet
| DESCRIPTION |
RAPIDO |
| Max flow rate |
2.1 gal/h |
| Flow rate at 3 ft |
1.9 gal/h |
| Flow rate at 10 ft |
1.4 gal/h |
| Max dry suction height |
3.3 ft |
| Max wet suction height |
6.6 ft |
| Max delivery height |
28 ft |
| Alarm contact |
NO/NC-120v / 8A |
| Pump dimensions |
3.4” x 1.8” x 1.7” |
| Sensor unit dimensions |
3.2” x 1.6” x 1.6” |
| Weight |
53 oz |
| Power supply |
120v or 230v |
| Noise level |
22 dBA |
|
| |
