The RAPIDO Condensate Pump offers an easy-to-install, universal solution for condensate removal. Integrated into a line cover elbow, it installs directly on the outlet side of any ductless evaporator, providing a seamless, plug-and-play setup. This pump is compatible with all line-set cover systems and includes a detection unit, check valve, ventilation tube, and all necessary installation components, ensuring quick and hassle-free installation. Designed to meet rigorous quality standards, the RAPIDO pump ensures reliable operation and durability, making it an efficient and versatile choice for a wide range of systems.
Engineered, manufactured and tested according to rigid Swiss quality standards.
Tested at 120V/60 Hz with water at 68°F
Product certifications available upon request.
| PART NUMBER | RAPIDO-230V |

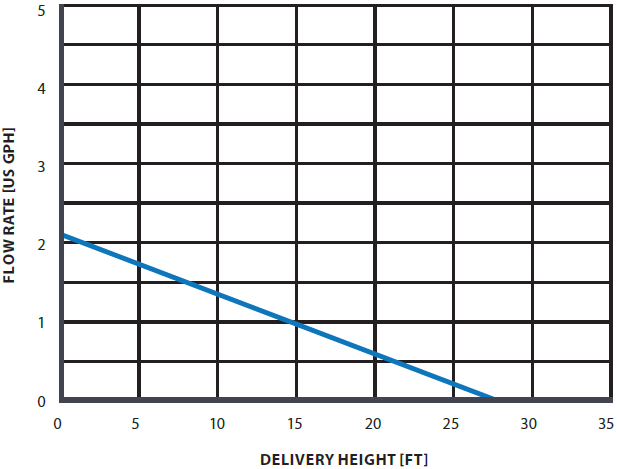

| Max. Flow Rate | 2.1 GPH |
| Flow Rate at 3′ | 1.9 GPH |
| Flow Rate at 10′ | 1.4 GPH |
| Max. Dry Suction Height | 3.3′ |
| Max. Wet Suction Height | 6.6′ |
| Max. Delivery Height | 28′ |
| Alarm Contact | NO/NC-120V / 8A |
| Pump Dimensions (L/W/H) | 3.4 x 1.8 x 1.7” |
| Sensor Dimensions (L/W/H) | 3.2 x 1.6 x 1.6” |
| Weight | 53 oz. |
| Power Supply | 230V |
| Sound Levels | As low as 28.3 dBA |
RAPIDO Condensate Pumps
Universal that is Easy to Install with Plug & Play
Features & Benefits
The RAPIDO condensate removal pump is integrated in a line cover elbow, to be installed directly on the outlet side of a ductless evaporator.
- Versatile – Can be used with all line-set cover systems
- Easy to install – The RAPIDO is integrated into a line-cover elbow, easily installed on the outlet side of any ductless evaporator
- Plug & Play – Comes complete with Plug & Play detection unit and 6’ lead cable
Contents
- RAPIDO Pump Body
- Plug & Play Detection Unit
- Connection Elbow
- Check Valve
- Ventilation Tube
- 90° Elbow, 3’ of Line Set Cover
- Fixing Screws and Anchors
- Double-sided Foam Adhesive
