The ZENFLOW Condensate Pump efficiently removes condensate from minisplit HVAC units. It handles up to 5.3 gallons per hour (20 l/h) and can pump water up to 32.8 feet (10 M). The low-noise membrane pump operates at just 19 dBA, making it ideal for both residential and commercial use. Its compact design allows easy installation under the air handler, and the integrated non-return valve prevents backflow. With low energy consumption, multi-voltage support (100-240V, 50/60Hz), and easy maintenance, the ZENFLOW Pump ensures reliable, durable performance.
Contents
- ZENFLOW Pump
- Silicon hose
- Straight hose connector
- 4x Screws & 2x dowels for fixing
Product certifications available upon request.
Documents
Technical Specifications
Performance
Documents
Technical Specifications
| PART NUMBER | ZENFLOW |
| For Conditioners up to | 10 kW |
| Main Voltage & Frequency | 100-240V, 50/60Hz |
| Power Consumption | Operation: 4 | Standby: 1.5W |
| Max. Flow Rate | 5.3 g/h / 20 l/h |
| Max. Delivery Height | 32.8’ / 10 M |
| Pump Unit (L/W/H) | 12.4 x 2.1 x 1.7” / 315 x 43 x 43 mm |
| Alarm Switch | 100-240V, 5A NC Normally Closed |
| Pressure Hose | 6 x 1.5mm |
| Sound Levels | As low as 19 dBA |

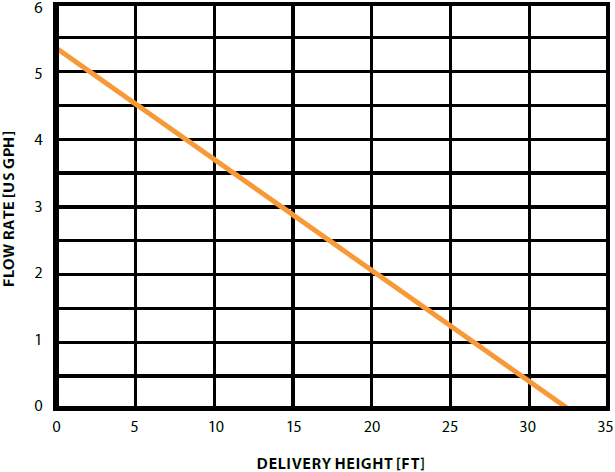

Performance
ZENFLOW Condensate Pumps
Universal, Efficient & Maintenance Free* - Quiet at 19 dBA
Features & Benefits
- Powerful Performance – Rated for 10 kW | 34,000 Btu capacity, that can handle up to 5.3 gallons per hour (20 liters per hour), effectively pumping water up to 32.8 feet (10 meters)
- Quiet Operation – Operating at sound levels as low as 19 dBA, this pump is ultra quiet, for a peaceful environment without interruption
- Compact & Stylish – With its sleek, compact design and stylish wall cladding, seamlessly integrates into any minisplit system setup, providing both functionality and aesthetic appeal
- Easy Installation – Designed for simple, hassle-free installation, the pump can be mounted directly under your HVAC unit on either side
- Efficient & Energy-Saving – The low-noise membrane pump is engineered for minimal energy consumption, providing efficient operation without the need for excess power
- Versatile – Compatible with a wide range of voltage settings, supporting 100-240V, 50/60Hz for versatile use in various locations
- Durable & Reliable* – Featuring an integrated non-return valve to prevent condensate backflow and easy maintenance with a cover that doubles as the tank, this pump ensures long-lasting reliability
